Computation of area. Except is may be otherwise provided for in this section, the computation of sign area shall be as follows:
1. General area calculation. Signs mounted on or displayed as a standard geometrical shape shall be measured by the standard mathematical formula for that shape. Signs mounted on or displayed as an irregular shape shall be measured by the smallest area of up to two standard geometrical shapes that can encompass the entire sign mounting.

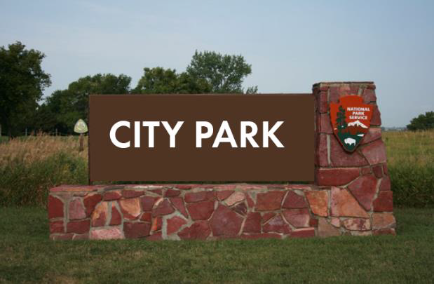

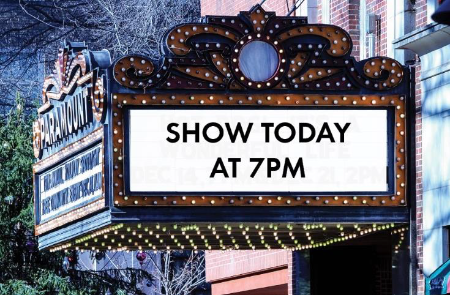

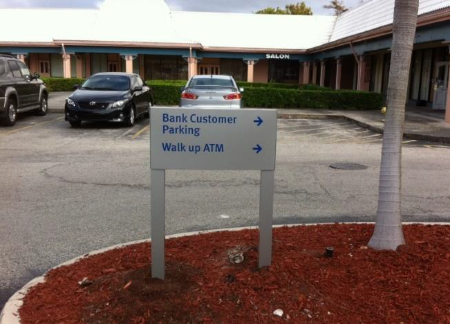

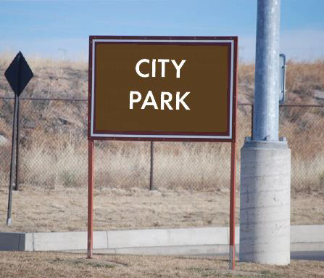

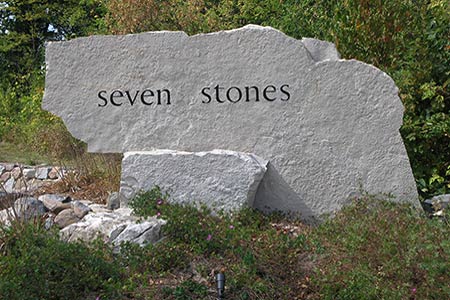

Figure 26-33-1. General Sign Area
Signs are measured based upon the basic shapes or a combination or multiple shapes. Displayed are examples of how a sign is measured and real examples of signs and they could be measured. |
2. Detached signs. The area of the sign shall be computed by the entire area of the face of the structure, cabinet, or module enclosed by the border of the frame.
3. Wall, window, or other building-mounted signs. Any building-mounted sign mounted on a background shall be measured by the area of the background. If mounted directly on the wall, the area shall be computed by means of the smallest single and continuous perimeter of up to two standard geometric shapes that enclose the outer limits of the writing, emblem, or other display. Gaps in writing, emblems, or other display greater than two times the height of the sign area, when using the same single continuous perimeter above, may be subtracted from the calculation of the sign area but shall be interpreted as two signs. The area of the wall or window area for the purposes of determining an allowed percentage shall be the total surface of the wall or window visible in an elevation view.

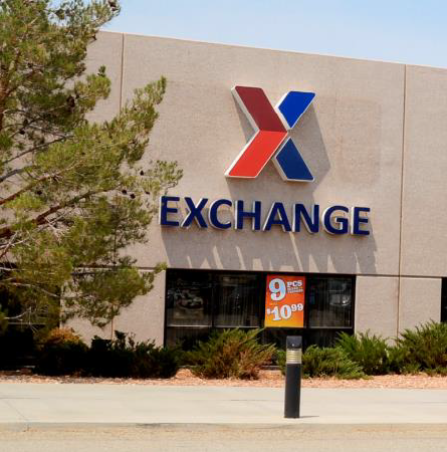

Figure 26-33-2. Building-Mounted Signs
Building-mounted signs can be measured as one sign or two depending on the distance between the two. If the sign distance exceeds two times the height of the sign, it is measured as two signs could be measured. |
4. Double-faced signs. Where the sign faces of a double-faced sign are no more than three feet apart at any location, only one face will be measured in computing sign area. If the two faces of a double-faced sign are of unequal area, the area of the sign will be the area of the larger face. In all other cases, the areas of all faces of a multifaced sign or the surface area of objects will be added together to compute the area of the sign.
Computation of height and location.
1. Height. The height of a sign shall be computed as the distance from the base of the sign at normal grade to the top of the highest attached component of the sign. Normal grade shall be the newly established grade after construction, exclusive of any filling, berming, mounding, or excavating solely for the purpose of locating the sign. In cases in which the normal grade cannot reasonably be determined, sign height shall be computed on the assumption that the elevation of the normal grade at the base of the sign is equal to the elevation of the nearest point of the crown of a public street or the grade of the land at the principal entrance to the principal structure on the lot, whichever is lower.
2. Location.
a. Signs shall be located on private property, unless otherwise permitted in this chapter.
b. No sign shall be located within the thirty-foot sight distance triangle, of any corner lot as defined in Article
II, §
26-5 (Defined terms), of this chapter or within a similar area at the intersection of any property entry drive intersection with a public street.
Quantity of signs per business. Signage related to business locations shall be limited to the quantities stipulated below:
1. Each individual building or structure occupied by one business shall be allowed a maximum of two signs, which may be a wall sign, a projecting sign, a ground sign or a pole sign, provided that there shall not be more than one sign per type, except as detailed in Subsection C2.
2. For a business located on a lot with multiple street or parking frontages, one wall sign may be permitted on each street/parking side of the building, one projecting sign may be permitted on each street/parking side of the building, and one pole sign or ground sign on such lot may be permitted, provided that there shall not be more than two types of signs.
3. Where more than one business has a separate exterior entrance to a building, each business shall be allowed two signs, one of which may be a wall sign and the other of which may be an under-canopy sign or a sign as described under §
26-33 (Design and location standards), Subsection D9 (Standards and requirements by sign types; Shopping center signs) herein, if applicable.
4. Two nonilluminated signs may be lettered on the glass show window or entry door of each storefront of a business, as described under §
26-33 (Design and location standards), Subsection D5 (Standards and requirements by sign types; Window signs).
5. A canopy or awning sign may be substituted for a permitted wall sign upon determination by the Planning, Zoning, and Architectural Review Commission of a hardship warranting such sign, provided that such sign is in compliance with all of the requirements of this chapter and such sign:
a. Maintains a clearance of at least 13 feet above grade where there will be vehicular traffic beneath it or maintains a clearance of 10 feet above grade where there will be pedestrian traffic beneath it.
b. Is painted or is of the same material as the awning or canopy when the sign is applied to cloth or similar material.
c. Is not internally illuminated.
6. The limitation as to the number of signs shall not include window signs, directional signs, signs directly facing the ordering area at a drive-through restaurant, or monument or ground signs that identify a shopping center, business, park, or multitenant development.
Permit required. No sign shall be erected, nor the location of any existing sign changed, until the Director of Public Services has issued a permit.
1. An application for a sign permit shall be accompanied by plans and specifications. The plans and specifications must be drawn to scale and shall include the dimensions, material, and details of construction of the proposed sign, together with an accurate colored rendering of the proposed sign. A site plan of the property and/or building elevations indicating where the sign(s) is(are) to be located must also be provided.
2. Before a permit can be granted for the installation of any sign, the applicant for said permit must submit evidence of an agreement signed by the owner or owners of said property granting permission to the applicant to install said sign and binding said owner or owners, their heirs and assigns irrevocably to permit the City through its agents to enter on said real property for the purpose of removing said sign or signs as provided under the provisions of this chapter, and waiving and holding the City harmless from any damage to said real property occasioned by said sign removal.
3. Vintage signs. In addition to the general application requirements in this section for a sign permit, an application requesting vintage sign designation or modification shall require:
a. Detailed drawings and/or photographs of the sign in its current condition;
b. Written narrative and supporting documentation demonstrating how the sign meets the applicable criteria;
c. Detailed drawings of any modifications being sought;
d. Detailed drawings of any relocation being sought; and
e. Historic and current photographs of the sign.
4. The Director of Public Services may prescribe suitable regulations not inconsistent with the provisions of this section concerning the form and content of all applications for the various types of permits herein required.
Permit fees. A permit is required for the erection of signs.
1. Before the issuance of each required sign permit, a fee in the amount established by the Board of Aldermen shall be paid to the City.
2. For each temporary sign requiring a permit, the fee shall be in the amount established by the Board of Aldermen.
3. The provisions of the building code and electrical code of the City shall govern the construction, alteration, and maintenance of all signs.
4. If the sign is illuminated, an electrical permit and inspection by St. Louis County shall be required.
Permit fee exceptions. Signs listed in §
26-35 (Exemptions and prohibitions) Subsection
A (Exemptions) of this article are not subject to payment of permit fees and may be erected according to the standards provided for therein.
Maintenance. All signs shall be maintained in good repair.
1. Signs and their related support structures must be free of rust, peeling, flaking, fading, broken or cracked surfaces, and broken or missing letters. Every supporting structure shall be kept in an upright condition. Electronic message centers or displays shall have properly functioning electronic components.
2. Where upon inspection by the Director of Public Services, or their designee, it has been determined that any sign requires maintenance or repair, written notice to the owner, the tenant, and/or the managing agent of the property on which any such sign is located shall be given by the Director of Public Services. The property owner, tenant, and/or managing agent of the property shall be provided with a period of 30 days in which to correct the condition. The Director of Public Services shall have the ability to grant, in writing, an extension of not more than 30 days.
3. Signs which are not properly maintained, and which have not been repaired within the time period as specified in § 26-36A2 above, will be subject to removal in accord with the provisions of §
26-36B of this section below.
